Service Upload

See also: Services · Add a service · Media pipeline

Manages file-upload tasks for Dédalo sections, areas and tools.

Use

The upload service is used in several scenarios. It handles one file at a time and is file-format agnostic, so you can set the allowed extensions. It can also chunk files where the upload size must be controlled (the max accepted size is a server config value — DEDALO_UPLOAD_MAX_SIZE_BYTES, 2 GB by default — reported to the client via get_system_info so it can reject oversize files before transfer).

Sample usage:

// import instances module
import * as instances from '../../../core/common/js/instances.js'

// init
const service_upload = await instances.get_instance({
    model               : 'service_upload',
    allowed_extensions  : ['jpg','jpeg','png','tif','tiff','bmp','psd','raw','webp','heic','avif'],
    mode                : 'edit',
    id_variant          : 'my_service', // optionally set to prevent id collisions
    caller              : self // object mandatory, normally a component, tool or section instance
})

// build
await service_upload.build()

// render
const service_node = await service_upload.render()

// Place it
my_container_node.appendChild(service_node)

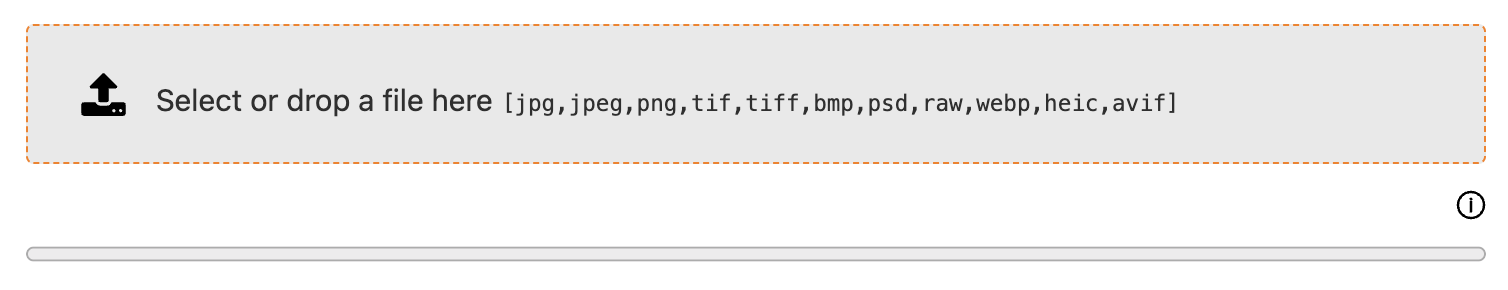

Preview

Events

✅ upload_file_done

When the upload is finished, 'upload_file_done' event is fired, passing resulting file data information.
Usually, this response is used on the server to start processing the uploaded file.

name: composition of 'upload_file_done_' + caller.id

sample: 'upload_file_done_tool_dev_template_dd1353_dd1324_edit_lg-eng'

sample event response (as returned by the multipart upload endpoint, src/core/media/ingest/upload_endpoint.ts → handleMediaUpload)

{
    "file_data": {
        "key_dir": "component_geolocation",
        "tmp_name": "my_file.zip",
        "upload_id": "9f0c4a1de5b4471aa0d2",
        "extension": "zip",
        "chunked": true,
        "chunk_index": 0,
        "total_chunks": 1,
        "complete": true
    }
}

chunk_index/total_chunks are echoed back on every chunk so the client's own counter (files_chunked[chunk_index] = tmp_name) knows when to fire join_chunked_files_uploaded; the join re-assembles the parts and verifies the whole assembled file — its signature and, in bounded windows, its body — before it is usable server-side.

upload_id identifies ONE transfer. A client may send it as a form field on every part of a file (any 8 to 64 characters of A-Z a-z 0-9 _ -, the same value for every part, a new value per file); the server refuses a value outside that shape. A client that does not send one gets a value derived from the file name and the chunk count, which is enough to keep two different files apart but not two simultaneous transfers of the same file name. It is echoed here so it travels back on the join request, and it may also be sent to delete_uploaded_file to drop a cancelled transfer's parts immediately.

tmp_name on a response with "complete": true is the name the file really has in the staging directory, and it is not always the name that was uploaded: names are sanitised, and two files whose sanitised names would collide are kept apart with a -1, -2 … suffix. Always read the staged name from the response — never re-derive it from the display name.

Client side handle

calling server from tool to handle upload file:
Once file upload is finished, the file is ready in a server side temporal directory. Now you can move it or process it by calling a custom server action (from tool for example — tool_upload's own process_uploaded_file_controller does exactly this).

// handle upload file to fire a server process from a tool:
    // import the required modules
    import {create_source} from '../../../core/common/js/common.js'
    import {data_manager} from '../../../core/common/js/data_manager.js'

    // subscribe to the service upload file done
    event_manager.subscribe('upload_file_done_' + self.id, fn_upload_done)

    // function to handle the event trigger
    function fn_upload_done(response) {
        // rqo (build request query objet for call API)
        const rqo = {
            dd_api  : 'dd_tools_api',
            action  : 'tool_request',
            source  : create_source(self, 'process_uploaded_file'),
            options : {
                component_tipo  : self.main_element.tipo,
                section_id      : self.main_element.section_id,
                section_tipo    : self.main_element.section_tipo,
                config          : self.context.config,
                file_data       : response.file_data
            }
        }

        // exec API call
        const api_response = await data_manager.request({
            body : rqo
        })
    }

Server side handle

The dd_tools_api tool_request dispatch routes process_uploaded_file to tools/tool_upload/server/index.ts, whose handler calls processUploadedFile() (src/core/media/ingest/process_uploaded_file.ts). That in turn calls addFile() (src/core/media/ingest/add_file.ts), which rebuilds the staged path server-side and never trusts a client-supplied path:

// stagingDir() in src/core/media/ingest/add_file.ts — the staging root for a
// user + key_dir. Compounds to something like:
// '<media_root>/upload/service_upload/tmp/1/component_geolocation/my_file.zip'
const root    = requireMediaRoot(mediaRoot)              // media root (config.media.rootPath)
const safeKey = sanitizeSegment(keyDir)                  // 'component_geolocation' — rejects '..', '/', NUL, etc.
const dir     = resolve(root, config.media.upload.tmpSubdir, String(userId), safeKey)
// dir is then confined (realpath-style) to the staging subtree before any file op.

// addFile() resolves the staged source under `dir`, re-validates the extension
// against the component's type allowlist, backs up any existing target
// (rename_old_files), and moves the file into the original-quality dir.

Every path segment (key_dir, tmp_name, the user id) is sanitized and the final path is confined inside the staging root — a client can never smuggle a traversal or an absolute path through file_data (SEC-063).
