Adding or installing new hierarchies

See also: Management and maintenance · Thesaurus dependencies

Hierarchies (thesauri) are an important part of the Dédalo system. Dédalo uses hierarchies in many scenarios: normalized toponymy, languages, themes, materials, techniques and more. Adding or installing new hierarchies is an important maintenance task.

Defining a hierarchy

Hierarchies are a complex data structure with several relation formats. As the name suggests, the data is structured hierarchically through parent-child relations; Dédalo also supports other relation types such as equality, change-to and equivalence.

By default all hierarchies sections are a clone of the hierarchy20 section. But is possible use any other section adding the relations and definition to create a hierarchy with any flat section.

Hierarchies are showed inside the Thesaurus area and they are viewed with a tree representation.

What is the difference between a hierarchy and a thesaurus?

A hierarchy is the structure of the data; the thesaurus is the data itself — the data entered by users or imported. Every thesaurus has a controlled definition in the Dédalo ontology (as an expansion of the ontology), and that definition is called a hierarchy.

In other words, hierarchies are the meta information of the thesaurus.

Creating new hierarchies

Is necessary to identify two different hierarchies types:

• Common and shared hierarchies
• Private hierarchies.

Common or shared hierarchies

Every hierarchy has a unique TLD that identify it and is used into Dédalo ontology as a specific section with his own configuration. To create or import a common or shared hierarchies you will need to know the TLD before open the new hierarchy.

In some hierarchies this TLD use a standard denomination, as toponymy hierarchies, that use the ISO 3166-1 definition to identify the countries.

Some common and shared TLD's: (list ordered by type and name)

Hierarchy	Description	type	section	TLD
Chronological	Periods and time events	Thematic (1)	hierarchy20	dc
Culture	Defines different cultures and his space and time	Thematic (1)	hierarchy20	culture
Deposition type	Defines the different Deposition types of donations in register	Thematic (1)	hierarchy20	depositiontype
Iconography	Defines iconography	Thematic (1)	hierarchy20	icon
Immovable	Defines places as archeological sites, findspots	Thematic (1)	hierarchy20	tchi
Inscriptions and measures	Defines typologies of inscriptions and his ubication into the object	Thematic (1)	hierarchy20	pieces
Material	Defines the composition materials used in objects	Thematic (1)	hierarchy20	material
Object name	Defines the different names for objects	Thematic (1)	hierarchy20	object
Onomastic	Names of people and places	Thematic (1)	hierarchy20	on
Technique	Defines the techniques used to build objects	Thematic (1)	hierarchy20	technique
Thematic	Themes used to analyze heritage	Thematic (1)	hierarchy20	ts
ISAD(g)	Defines the hierarchy related to the ISAD(g)	Catalog (8)	isad1	isad
Languages	Languages families and dialects	languages (3)	hierarchy20	lg
Cause of uncertainty	Defines the reasons of the uncertainty	Semantic (4)	hierarchy20	uncertainty
Position role	Defines the different position role for persons	Semantic (4)	hierarchy20	rolepos
Semantic	Defines context for data, relations between concepts	Semantic (4)	hierarchy20	ds
Users jobs	Defines the different jobs for people	Semantic (4)	hierarchy20	rolejob
Users roles	Defines the different roles of Dédalo users	Semantic (4)	hierarchy20	roleusr
Special	Defines a restrictions for indexation	Special (5)	hierarchy20	special
Analysis	Defines the different analysis techniques applied to objects.	Restoration (10)	hierarchy20	resanalysis
Cause	Defines the reasons of the affectation	Restoration (10)	hierarchy20	rescause
Countermark	Defines symbols used as countermarks	Epigraphy (7)	hierarchy20	sccmk
Greek	Defines especial symbols not defined into Unicode	Epigraphy (7)	hierarchy20	scell
Job material	Defines the work materials to be used in the restoration process	Restoration (10)	hierarchy20	resmaterial
Latin	Defines especial symbols not defined into Unicode	Epigraphy (7)	hierarchy20	sclat
Northern Paleo Hispanic	Defines Iberian symbols not defined into Unicode	Epigraphy (7)	hierarchy20	scxibo
Pathology	Defines the affectations in the objects	Restoration (10)	hierarchy20	respathology
Punic	Defines especial symbols not defined into Unicode	Epigraphy (7)	hierarchy20	scxpu
South-Western Paleo Hispanic	Defines Iberian symbols not defined into Unicode	Epigraphy (7)	hierarchy20	sctxr
Southern Paleo Hispanic	Defines Iberian symbols not defined into Unicode	Epigraphy (7)	hierarchy20	scxibm
Symbols	Defines symbols	Epigraphy (7)	hierarchy20	scsym
Treatment	Defines the processes that can be applied into the restoration process	Restoration (10)	hierarchy20	restreatment
Web sites	Website structure, menus, etc	Websites (6)	ww10	ww
Ubication	Topographic, to identify the location of objects	Ubications (9)	hierarchy20	ubication

Languages is already there

The Languages hierarchy (lg) is active on every installation: its terms ship with the installation database and the installer activates it. There is nothing to create, import or reset for it.

TLD's names

The first hierarchies created were toponyms, and this hierarchies followed the ISO TLD's Alpha 2 to use as Dédalo ontology TLD. Some of the first common hierarchies follow the ISO Alpha 2 rule, as thematic hierarchy, that use ts as TLD, by the time, it became impossible to create new ontologies following the Alpha 2 rule, so, the Alpha2 rule was removed and now Dédalo can use a longs TLD's, but following some rules: For this historical reasons no spaces, especial characters, numbers, points, commas or any other characters outside ASCII characters are valid (as accents á, è, ç, ñ, etc.). To create hierarchies TLD's, only [a-z] characters are accepted.

Private hierarchies

Is possible to create hierarchies by your own, alone for other Dédalo installations. In this case you will need to use a specific TLD following the rule of use only letters, without spaces, numbers or any special characters.

Usually, the hierarchy reference will be hierarchy20, the normalized section used as thesaurus model.

Process to create new hierarchy

Both, common and private, hierarchies has the same process to be created.

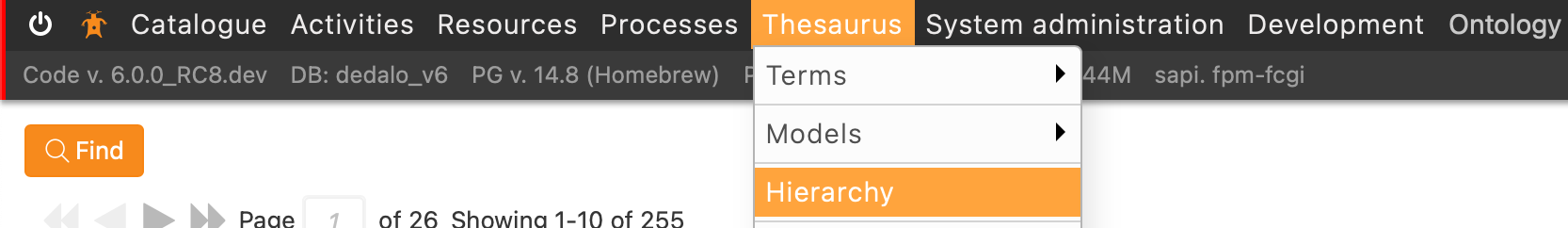

1. Go to Hierarchy section in the Thesaurus menu.

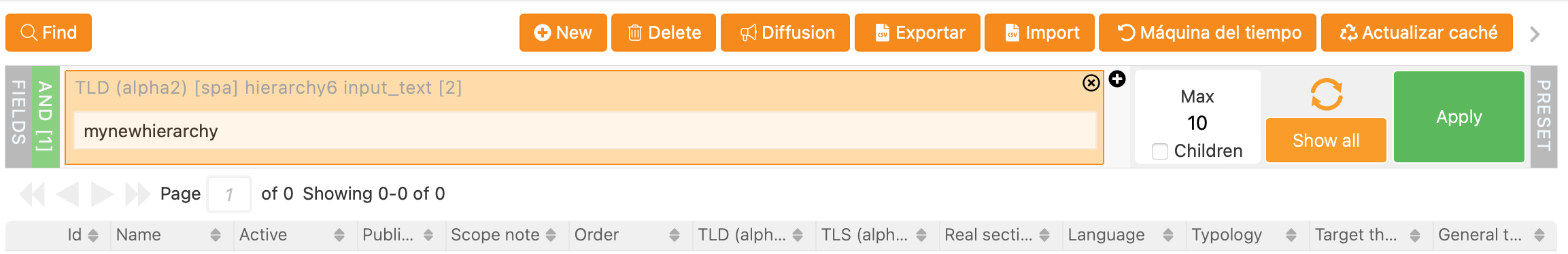

2. Review if the TLD exists previously doing a search.

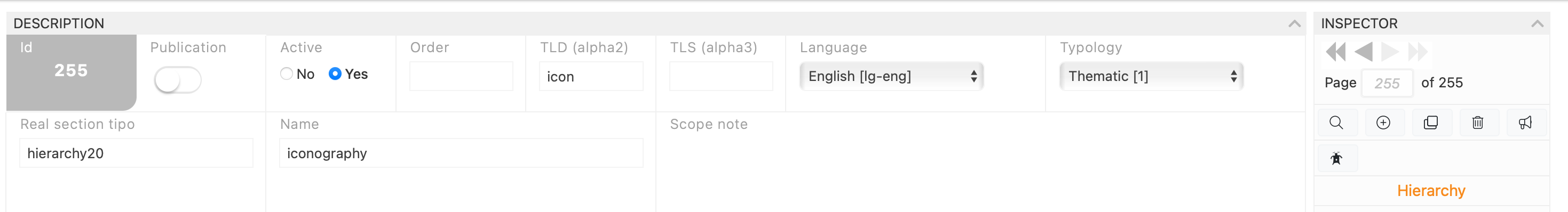

3. If not exists, create new record as any other section.

4. Mandatory Add the new TLD into the TLD (Alpha2) field.
5. Add the main language of the hierarchy
6. Mandatory Set the Typology of the new hierarchy
7. Mandatory Set the real section tipo (usually hierarchy20)
8. Mandatory Add the name of the hierarchy

9. You do not need to set "Active" yourself — the tool does it. (Setting it to "Yes" first is harmless.)

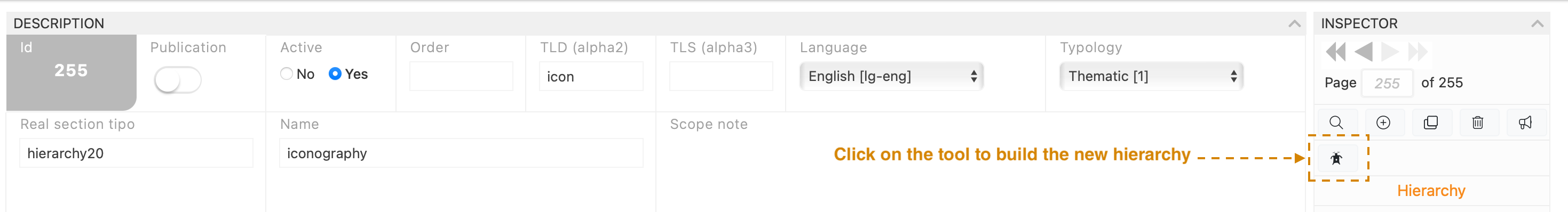

10. Open the tool to create the new hierarchy, the tool is locate into the inspector.



11. Read the status panel, then press Activate / repair.



    The panel lists the ten conditions a usable hierarchy must meet and marks each ✓ or ✗, so you can see what is missing before you press anything — and afterwards, exactly what changed.

    How this works

    The button is tool_hierarchy's generate_virtual_section action (tools/tool_hierarchy/server/tool_hierarchy.ts), which converges the record to that invariant via ensureHierarchy() in src/core/ontology/hierarchy_state.ts: it provisions the <tld>1/<tld>2 virtual sections and their dd_ontology nodes, flags the hierarchy active, and roots the tree at a general term named after the hierarchy. The write gate (section permission ≥ 2) is enforced the same way as any other write. It also grants your own profile level 2 over the two new sections and everything inside them, so the hierarchy is usable immediately; other users still need their permissions set in step 12.

    The action is idempotent and non-destructive: it creates only what is missing. Pressing it on a healthy hierarchy reports "Already consistent — nothing to do", so it is also the way to repair a hierarchy that is half-built — read the panel for the reason. The Rebuild the ontology checkbox is the destructive variant: it deletes the TLD's ontology and re-creates it, and your thesaurus terms are kept.

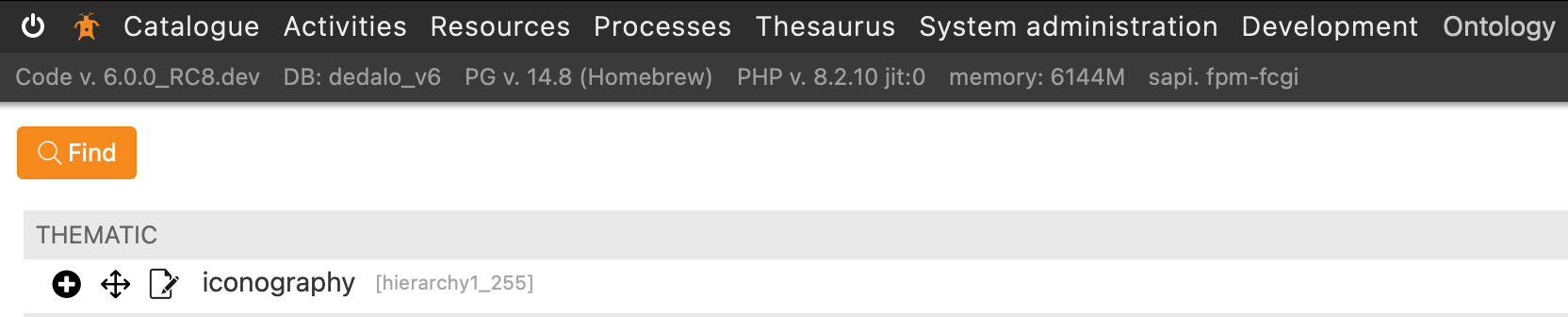

12. Check in Thesaurus that this hierarchy is ready and set the permissions to users as you need.



Toponyms or other standardized hierarchies

Dédalo ships around 150 standardized hierarchies — the ISO country toponymies and the common thematic ones — in install/import/hierarchy/: one manifest, hierarchy.json, that lists every hierarchy the release offers, and the dump files of their terms. You do not create these by hand:

• During the install, the installer asks: its Thesauri screen as a checkbox list, or --hierarchies <codes>|default|none on the command line (command-line flags). Both offer every entry of hierarchy.json and pre-select only the thesauri an installed ontology declares as a dependency, mandatory or optional — all pre-ticked, and you can untick any of them. A mandatory one is marked strongly recommended; leaving it out never stops the install, it only gives a warning that you can install it later from Maintenance → Install hierarchies (dependencies). Nothing else is pre-selected — no country's toponymy either. The installer suggests importing your own country's toponymy (for example Nepal, np, for an installation in Nepal); that is advice, never a default. none is a valid answer. The Languages thesaurus (lg) is not a choice: it is active on every install, and naming it is dropped with a note.
• Afterwards, Maintenance → Install hierarchies (add_hierarchy) offers the same list, marking the ones already installed, and imports on demand.

Either way the import is the same operation. First, the entry must fit this installation: its language must already exist in the Languages thesaurus, its typology must be a record here, and a real section it names must be a section here. Otherwise the hierarchy is refused and nothing is written. Then every data file the entry lists is checked against its sha256 (a missing or changed file refuses that hierarchy, with nothing written). Then the terms are copied into matrix_hierarchy, the record counter is re-consolidated, and the hierarchy is activated. A hierarchy listed without data files is activated as an empty thesaurus, ready for your editors. The first activation writes the hierarchy's registry record from its manifest entry — name, typology, default language, real section, scope note and dependencies. Activation is not optional — imported terms with no ontology and no active registry record are unreachable, so an import whose activation fails is reported as a failure for that TLD, not as a partial success.

A thesaurus's own dependencies are suggested with it: if its entry declares other thesauri, ticking it ticks them too, and a mandatory one is marked strongly recommended. You can untick any of them. A thesaurus dependency never stops an import: what you leave out, or what has no entry in hierarchy.json, is installed without it, and the result warns that it is strongly recommended and can be installed later from this same panel. You may also keep a thesaurus of your own under another name instead. Only a declared mandatory ontology that this installation does not have stops the import: nothing is installed, and the reason is reported.

A hierarchy whose terms are already present is not copied again, never merged: the import is additive. It is still activated, so a run that was interrupted after the import is finished by the next one. To replace one with the shipped version, use the panel's reset action — it deletes that TLD's rows first, so anything your editors added to it is lost. The same applies when a hierarchy was installed empty and a later release ships its terms: the install refuses it and tells you to use reset, because the only row it holds is the root created when it was activated.

Moving a hierarchy between installations

The vendored set is not the only source. A hierarchy curated in one install — a private thesaurus, or a shared one you have extended — travels to another install as the same kind of dump file, produced by the Maintenance area's Export hierarchy panel.

The two halves meet in one directory: install/import/hierarchy/, inside the engine's own tree. Export writes there; import reads from there. There is no path to configure — the destination is derived from the engine's location, so a file exported on a machine is immediately offered by that machine's own import panel.

Nothing you put in install/import/hierarchy/ survives a code update

The directory is part of the code tree. A code update from the panel moves the whole tree aside, files you added and your edits to hierarchy.json included, and the new release brings its own hierarchy.json. A git pull stops on the edited hierarchy.json as a conflict. Import the hierarchies you carried over before updating the code, or copy the files and the manifest entries in again afterwards. The exports you need to keep belong in your own archive, not in this directory.

Coming from v6

v6 had an EXPORT_HIERARCHY_PATH constant for this destination. It is gone, and the config migration drops it: the only useful destination is the directory the import half already reads.

1. Export, on the source install

Maintenance → Export hierarchy. The panel has two exports, run in this order.

Data files. List the section tipos to dump, comma-separated, for example es1,fr1. Each one must be the thesaurus section (hierarchy53) or the model section (hierarchy58) of an active hierarchy, and it must be that hierarchy's own <tld>1 or <tld>2: hierarchy.json lists no other data file. Each accepted tipo produces one <section_tipo>.copy.gz: a gzip-compressed psql COPY of that section's rows in matrix_hierarchy. Anything else gets its own error line and nothing is written for it. That includes a tipo of an inactive hierarchy, an unknown tipo, and the old * (every active hierarchy) and all (the whole table) forms, which are no longer accepted. The panel lists the files it produced, with a download link for each (/dedalo/install/import/hierarchy/<file>), and prints the manual re-import command underneath.

Languages (lg) are never exported

lg1 and lg2 are refused. The language thesaurus is a core hierarchy: its terms live in matrix_langs and ship in the install seed (install/db/seed/matrix_langs.copy.gz). Every installation already has them, and importing them into matrix_hierarchy would only add noise.

hierarchy.json. The Export hierarchy.json button writes install/import/hierarchy/hierarchy.json. That is the manifest the installer reads. It lists every active hierarchy with its name, typology, language, real section, scope note and declared dependencies. For each one it also lists the data files present in the directory at that moment, with the sha256 of their bytes. Run it after the data export. A data file written later is not covered by the manifest's checksums, and the installer refuses a file whose checksum does not match. An active hierarchy with no data file is listed with data_files: []: it is installed as an empty thesaurus. The panel names these hierarchies under the result. If a registry row cannot be described (no valid TLD, no typology, no integer language id, a real section that is not a section, or a stored value the format does not accept, such as a language code in capitals), it is left out and named in the panel's error lines. The file is still written for every other hierarchy.

2. Carry the files across

Copy the data files into the target install's install/import/hierarchy/ directory, as the service user. A hierarchy is at most two files, and may have none (an empty thesaurus):

File	Holds
<tld>1.copy.gz	the thesaurus terms
<tld>2.copy.gz	the hierarchy's models, when it has them

3. List it in the target's hierarchy.json, or the panel will not offer it

The import panel offers exactly the entries of the target's install/import/hierarchy/hierarchy.json. A .copy.gz that no entry lists is never offered. Take each hierarchy's entry from the source's exported hierarchy.json — the whole object from active_hierarchies, with its data_files checksums unchanged — and add it to the target's active_hierarchies. If its typology_id is not yet in the target's typologies, copy that typology too. Do not retype an entry: the checksums are what proves the files you carried are the ones that were exported.

To move a whole installation's set, copy the source's hierarchy.json over the target's instead: it then offers exactly the source's active hierarchies.

A malformed hierarchy.json stops the installer and the panel

The manifest is read strictly. A missing required field, a wrong type, a duplicated TLD, a typology that is not listed or a data file that is not the entry's own refuses the whole file (install.manifest_invalid), and the error names the place in the file. Nothing is offered until it is fixed — never a silently shorter list.

4. Import and activate, on the target install

Maintenance → Install hierarchies, tick the TLD, import. This is the same code path as the vendored hierarchies: copy into matrix_hierarchy, re-consolidate the counter, activate. The TLD then appears in the Thesaurus area.

Two things the import does not do for you:

• Permissions. Grant the profiles that need it access to the new sections, as in step 12 above.
• Ontology dependencies. A hierarchy whose terms are referenced by components of another TLD needs that ontology present too. See thesaurus dependencies.

Verify the round trip

• [ ] The file is listed by the panel on the source install, and downloads.
• [ ] On the target, the TLD appears in the Install hierarchies list.
• [ ] After import, the Thesaurus area shows the tree with its terms.
• [ ] A portal or autocomplete pointing at that hierarchy resolves terms.

Ids are carried, not re-assigned

The dump preserves section_id. Importing into a TLD that already holds terms is refused as already installed rather than merged, precisely because the two id spaces would collide. Merging two populated copies of the same hierarchy is not what this tool does — export from one, import into an install that does not have it.
